Product Details:
|
| Product Name: | Tungsten Cemented Carbide Shaft Sleeves Bushings | Keywords: | Carbide Sleeves Supplier |
|---|---|---|---|
| Material: | Tungsten Carbide Nickel Cobalt | Surface: | Blanks Or Finished |
| Type: | Sleeve, Carbide Bushing | Application: | Used For Oil Pump, Water Pump, Anti-corrosion |
| Certificate: | API And ISO | Standard: | Non-standard/ Standard Are Available |
| Production Time: | 15-30 Days | ||
| High Light: | Petroleum Industry Tungsten Carbide Sleeve,carbide shaft sleeve,Petroleum Industry carbide shaft sleeve |
||

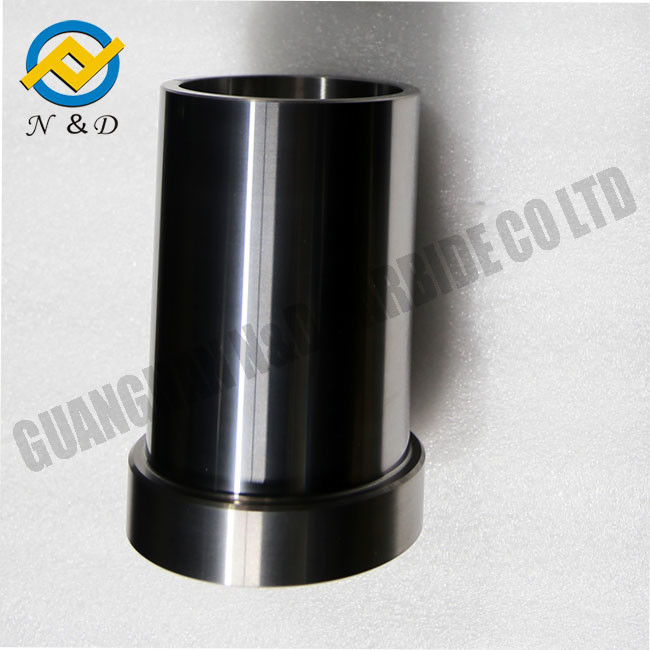

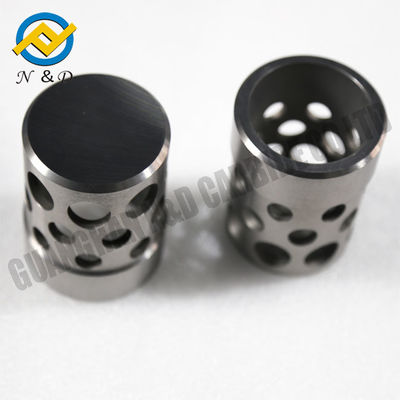

Customized Tungsten Cemented Carbide Shaft Sleeves Bushings For Petroleum Industry
Description
1.100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process.
5. High wear resistance,high hardness and impact toughness.
6. Advanced technology , precise grinding.
7. YG8,YG6,YG10,YG15,YG20,YG25,YL10.2,YS2T,YG6X,YGR60 ,YGR55,YGR50 etc all kinds of grades for your choose.
Application
The tungsten carbide sleeve will be used mainly for rotating support, aligning, anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotating, sand lash abrasion and gas corrosion in the oil field, such as slide bearing sleeve, motor axle sleeve and seal axle sleeve.
Service:
There is a big choice of sizes and types of the tungsten carbide bush sleeve, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
Why choose us
N&D focuses on the production of tungsten carbide products and tools, and has a wealth of customization experience.
