Product Details:
|
| Product Name: | Manufacturer Of Customized Cemented Tungsten Carbide Mechanical Seal Rings | Material: | Tungsten Carbide Cobalt Nickel Binder |
|---|---|---|---|
| Keywords: | Tungsten Carbide Mechanical Seal | Production Time: | 15-30 Days |
| Surface: | Blanks/Finished/Lapping | Certificate: | ISO/API |
| Standard Or Nonstandard: | Standard Or Nonstandard | Style: | Mechaical Seal, O Ring, Cemented Carbide Seal,TC Ring |
| Application: | Wear Resistance, Agitators, Pumps, Mechanical Seals | Size: | 6mm To 700mm |
| High Light: | Tungsten Carbide Mechanical Seal Rings,YG6 Mechanical Seal Rings,YN6 Mechanical Seal Rings |
||

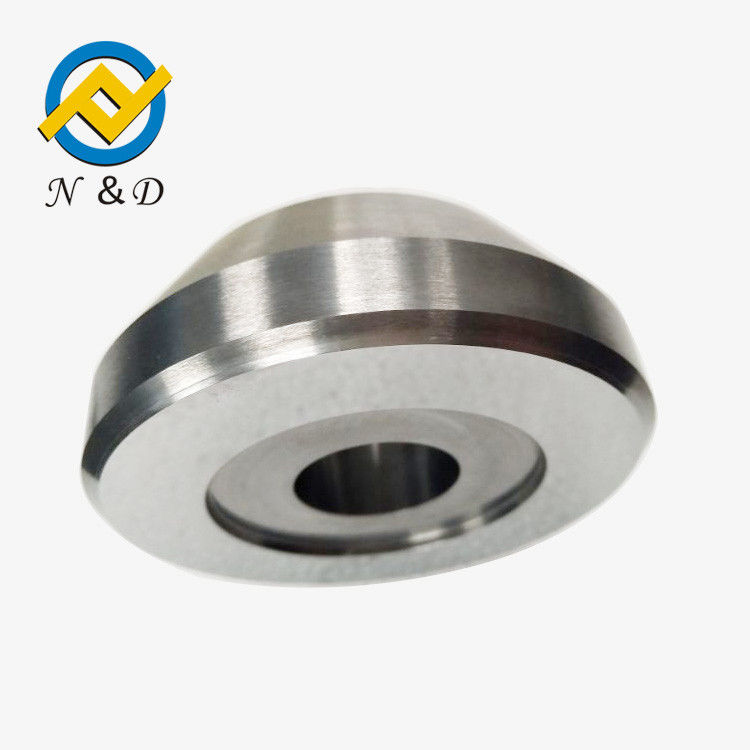

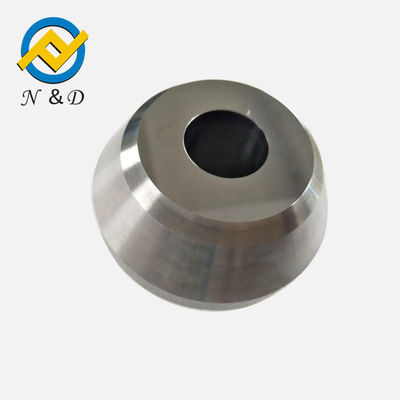

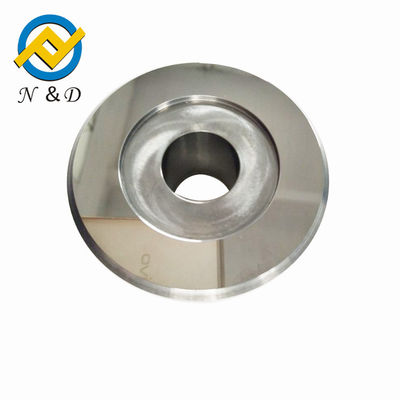

Manufacturer Of Customized Cemented Tungsten Carbide Mechanical Seal Rings
Description:
Tungsten carbide mechanical seal is widely used as seal faces or rings with resistant-wearing,high fractural strength,high thermal conductivity, small heat expansion co-efficient.The tungsten carbide mechanical seal ring can be divided into both of rotating seal-ring and static seal-ring.The two most common variations of tungsten carbide seal faces/ring are cobalt binder and nickel binder.We have many different material grade for customized wear resistance cemented tungsten carbide seal rings for mechanical seal.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
Application:
Tungsten Carbide mechanical seal rings are widely used as seal faces in mechanical seals for pumps, compressors mixers and agitators found in oil refineries, petrochemical plants, fertilizer plants, breweries, mining , pulp mills, and the pharmaceutical industry. The seal-ring will be installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Service:
There is a big choice of sizes and types of the tungsten carbide flat seal ring, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.
T.C Ring Shape for reference:
Guanghan ND Carbide produces a wide variety of wear-resistant and corrosion-resistant tungsten carbide components, our line includes:
*Mechanical seal rings
* Bushings, Sleeves
*Tungsten Carbide Nozzles
*API Ball and Seat
*Choke Stem, Seat, Cages, Disk, Flow Trim...
*Tungsten Carbide Burs/ Rods/Plates/Strips
*Other custom tungsten carbide wear parts
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? is it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
