Product Details:
|
| Product Name: | Tungsten Carbide Bushing Bearing Sleeves | Keywords: | Carbide Sleeves Supplier |
|---|---|---|---|
| Material: | Tungsten Carbide Nickel Cobalt | Surface: | Blanks Or Finished |
| Type: | Sleeve, Carbide Bushing | Application: | Used For Oil Pump, Water Pump, Anti-corrosion |
| Certificate: | API And ISO | Standard: | Non-standard/ Standard Are Available |
| Production Time: | 15-30 Days | ||
| High Light: | YG8 YG6 sleeve bushing,YG10X tungsten carbide bushing,tungsten carbide bushing 14.5 g/m3 |
||

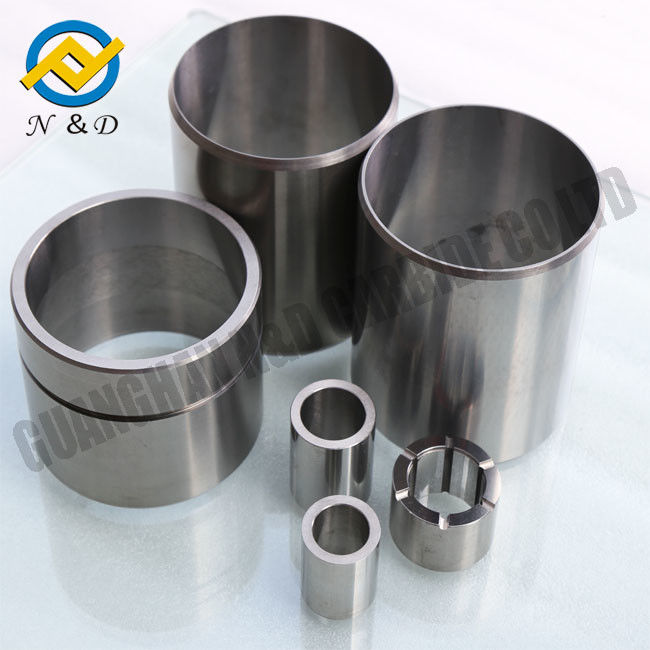

Custom YG8 YG6 YG10X YN6 YN8 YN9 Tungsten Carbide Bushing Bearing Sleeves
Advantages
(1). Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;
(2). The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;
(3) . No shape change, no twist when temperature is above 1000 °C or below 500 °C, long service life, the maximum height can reach 270mm;
Specificaiton
| Grade |
YG6/YG8/YG8C/YG11/YG11C |
| Heat resistance | 900℃ |
| Density | 14.5 g/m3 |
| Certificate | ISO9001 |
| Application | Mechanical seals, pumps, valve |
| Size | OEM |
| Feature | Superior wear,Corrosion resistance |
| Customized | Available |
| Standard or Nonstandard | Nonstandard |
Application
The tungsten carbide sleeve will be used mainly for rotating support, aligning, anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotating, sand lash abrasion and gas corrosion in the oil field, such as slide bearing sleeve, motor axle sleeve and seal axle sleeve.
Service:
There is a big choice of sizes and types of the tungsten carbide bush sleeve, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? is it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
