Product Details:
|
| Product Name: | Tungsten Carbide Shaft Sleeve For Submersible Oil Pumps | Keywords: | Carbide Sleeves Supplier |
|---|---|---|---|
| Material: | Tungsten Carbide Nickel Cobalt | Surface: | Blanks Or Finished |
| Type: | Sleeve, Carbide Bushing | Application: | Used For Oil Pump, Water Pump, Anti-corrosion |
| Certificate: | API And ISO | Standard: | Non-standard/ Standard Are Available |
| Production Time: | 15-30 Days | ||
| High Light: | YG6 YG6X Tungsten Carbide Sleeve,Nickel Cobalt shaft sleeve bearing,YG6 YG6X shaft sleeve bearing |
||

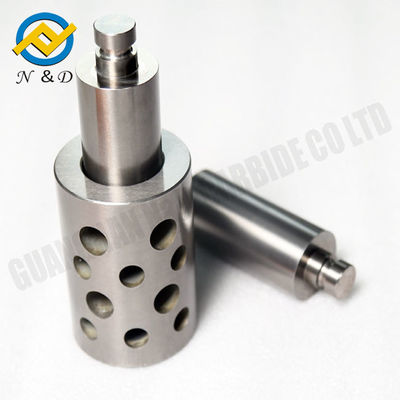

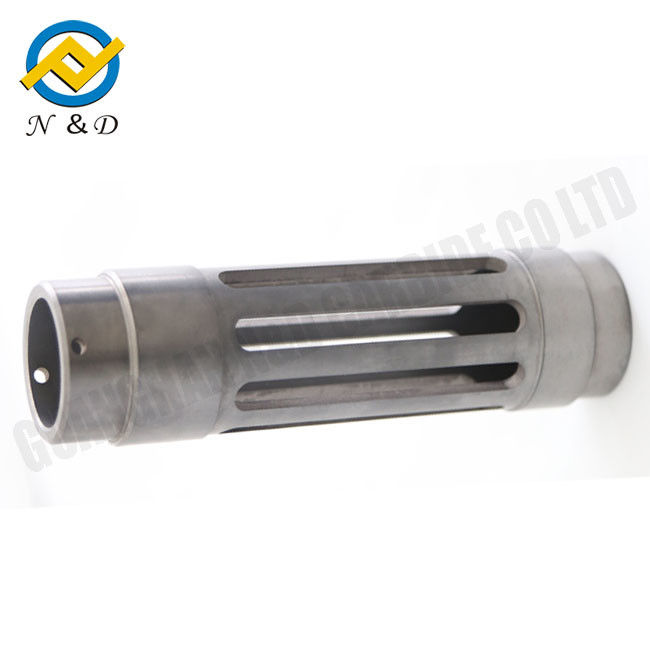

YG6 YG6X Nickel Cobalt Tungsten Carbide Sleeve Shaft Sleeve Bearing
Specificaiton
|
Size
|
Customized
|
|||
|
Model
|
Customized
|
|||
|
Grade
|
YG6, YG6X, YG8, YG8x, YG8A, YG8N, YG10, YG13X, YG13, YG15X, YG15, YG18X, YG18, YG20, YG20C, YG25, YG25C, YN7, YN9, YN13,YN15,YN18, YN20,YN25.....
|
|||
|
Materials
|
100% Virgin Tungsten Carbide
|
|||
Description
Base on different application of the users, carbide sleeves are usually made of different tungsten carbide grades. The major two series of tungsten carbide grade is YG(cobalt) series and YN(Nickel) series. Generally speaking, YG series tungsten carbide bushes have higher transverse rupture strength, while YN series tungsten carbide bush resist corrosion better than the former one. N&D carbide is your reliable tungsten carbide sleeve supplier.
Tungsten carbide sleeve shows high hardness and transverse rupture strength, and it has superior performance on resisting abrasion and corrosion, which enable it to be widely used in many industries.
Application
The tungsten carbide sleeve will be used mainly for rotating support, aligning, anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotating, sand lash abrasion and gas corrosion in the oil field, such as slide bearing sleeve, motor axle sleeve and seal axle sleeve.
Service:
There is a big choice of sizes and types of the tungsten carbide bush sleeve, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
Why choose us
N&D focuses on the production of tungsten carbide products and tools, and has a wealth of customization experience.
