Product Details:
|
| Application: | Milling,Sand Mill Machine | Grade: | YG6C/YG8C/YG11C/YG15C/ZD15,YG6,YG8,YG13C |
|---|---|---|---|
| Size: | OEM Accepted,Customizable,Drawing Provided,Customized | Advantage: | High Wear Resistance,good Wear Ability,High Efficiency,Long Life,high Hardness |
| Color: | Silver,Silver-grey | Service: | ODM OEM,OEM&ODM |
| High Light: | HRA92 rotor pins,YG8 rotor pins,Tungsten Carbide Pins For Mixing |
||

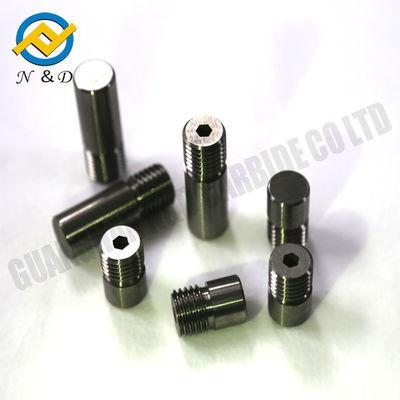

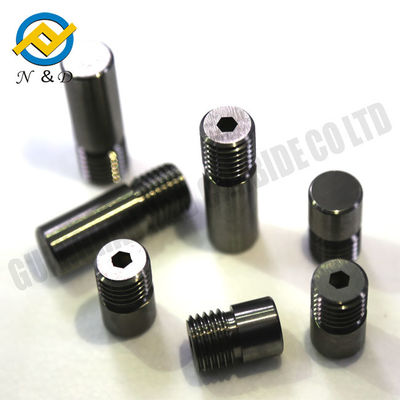

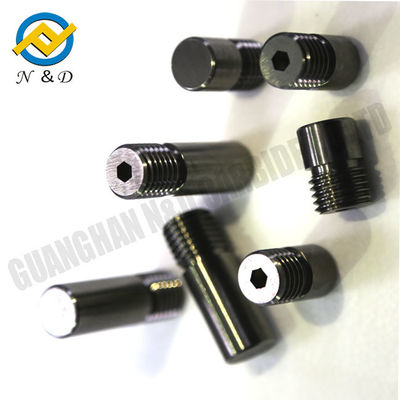

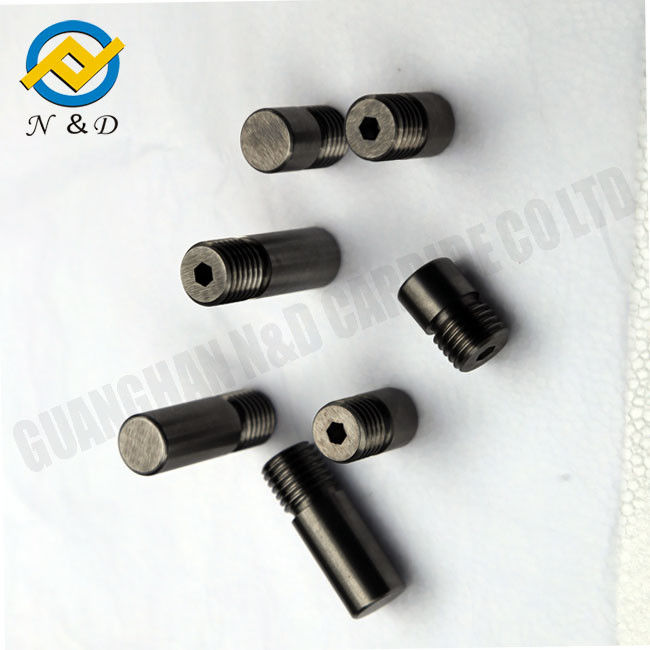

HRA92 YG8 Rotor Pins Tungsten Carbide Pins For Mixing Milling
Product Description and advantages
1.It’s save manufacutering cost
2.It’s not easy to impurities when the machine grinding
3.It’s long lifetime.
4.It reduce grinding is not complete
5.The material size after grinding can reach in nano level.
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Reference Drawing
Production Show
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
