Product Details:
|
| Application: | Milling,Sand Mill Machine | Grade: | YG6C/YG8C/YG11C/YG15C/ZD15,YG6,YG8,YG13C |
|---|---|---|---|
| Size: | OEM Accepted,Customizable,Drawing Provided,Customized | Advantage: | High Wear Resistance,good Wear Ability,High Efficiency,Long Life,high Hardness |
| Color: | Silver,Silver-grey | Service: | ODM OEM,OEM&ODM |
| High Light: | rod pin Superior Heat Stability,Tungsten Carbide hardened steel pins,hardened steel pins Superior Heat Stability |
||

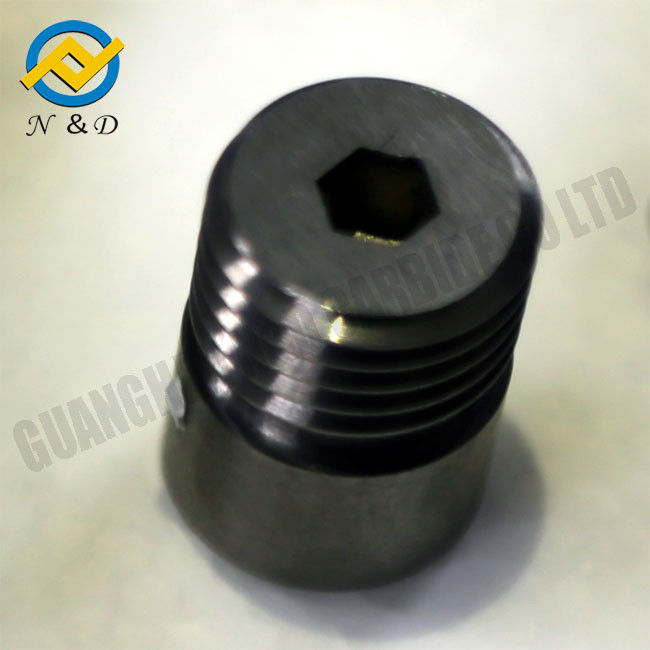

Customed Grinder Rotor Tungsten Carbide Pins For Mixing High impact resistant Corrosion resistant
Product Description
Suitable for grinding of different viscosities from micron to nanometer, which improves the effect of dispersing and grinding.
Mainly used for the grinding of various paints, inks, porcelain materials, dyes, plastics and other liquid slurry, especially suitable for the grinding of high viscosity, small batch materials and difficult to recycle materials of sand mills or materials that are not resistant to circulation Paste, ink, etc.
Tungsten Carbide Pins include two types:
1. Both the main body and the thread part are made of tungsten carbide, which is called a solid carbide rod pin;
2. The main body is tungsten carbide, and the threaded part is made of stainless steel (such as stainless steel 304, etc.).
Carbide Valve Trim produced by our company have several advantages
1.Excellent sealing and wear resistance.
2.Smooth and flat surface.
3,Can be customized according to drawing.
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Reference Drawing
Production Show
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q&A
| Q1: Are you a factory or a trading company? |
| A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years. |
| Q2:What is your principle for the samples? |
| A: We offer free samples if you are willing to pay the freight. |
| Q3:What is your delivery time? |
| A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock. |
| Q4:Do you have any test reports or certificates? |
| A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference. |
| Q5: Do you provide after-sale service? |
| A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement. |
