Product Details:
|
| Material: | Tungsten Carbide | Application: | Oil Field,oil Pump And Other Pump,,guide Bush |
|---|---|---|---|
| Product Name: | Bushing/bush/sleeve/tube,tungsten Carbide Bushinges&sleeves,09011828 Motor Shaft Tungsten Carbide Metal Bearing Sleeve,Customized Wear Tungsten Carbide Bush /bearing Bushing/thrust Sleeve,Tungsten Carbide Sleeve Bushing | Size: | Customizable,Standard & Customizable,Customized Size,OEM Accepted,Clients Drawings |
| Grade: | YG8 YG6 YG10X YN6 YN8 YN9,YG6X,YWN8 | Bush Types: | Sleeve Bushing |
| Shape: | Sleeve | Chemical Composition: | WC And Co,WC-Co,Co,WC-Ni,Wc |
| Advantage: | Superior Wear-resistance,Superior Wear-resistance And Impact Toughness,corrosion Resisting,long Life Time | Product Material: | Tungsten Carbide |
| High Light: | YG13 Tungsten Carbide Bushing,Oil Pump YG20 Tungsten Carbide Bushing,YG20 tungsten carbide bush Anti Corrosion |
||

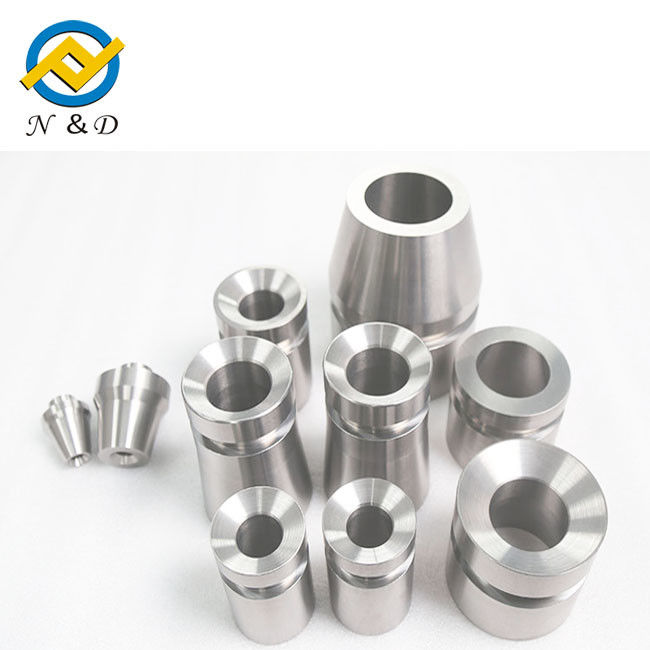

Oil Pump YG20 YG13 Tungsten Carbide Bushing Sleeve Anti Corrosion
Bushing Sleeves produced by our company have several advantages
1. Use 100% Raw material, strict incoming inspection.
2. Over pressure sintering, increasing the densification of the alloy teeth and increasing the 30% life span.
3. Can be customized according to the requirements of the customer.
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
