Product Details:
|
| Features: | Excellent Wear Resistant And High Hardness | Type: | Sleeve,Precision Nonstandard Parts(OEM Service) |
|---|---|---|---|
| Material: | Tungsten Carbide | Application: | Used For Water Pump,oil Pump And Other Pump |
| Product Name: | Bushing/bush/sleeve/tube | Size: | Customizable |
| High Light: | ISO9001 tungsten carbide tube,pump shaft sleeve With Inner Petal-3 Flaps,Multistage Centrifugal pump shaft sleeve |
||

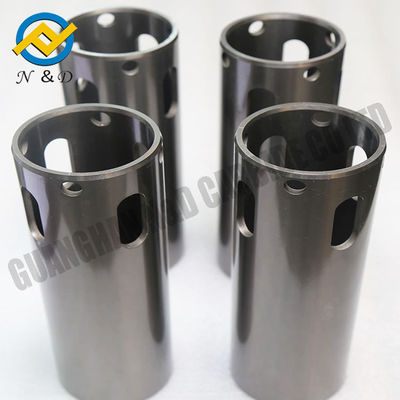

Water Shaft Bushing Sleeve With Inner Petal-3 Flaps For Multistage Centrifugal Pumps Excellent Wear Resistant
Product Description
Carbide shaft sleeves are tough wear,wear-resistant and corrosion-resistant bearings for pumps and motors.They are much more durable than the sleeves made of copper,stainless steel,or cast iron.Carbide sleeves are mainly used in multistage centrifugal pumps or water supply in skyscraper,water treatment,fire fighting,etc.
Tungsten Carbide Water Shaft Bushing Sleeve With Inner Petal-3 Flaps produced by our company have several advantages
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Reference Drawing
Production Show
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q&A
| Q1: Are you a factory or a trading company? |
| A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years. |
| Q2:What is your principle for the samples? |
| A: We offer free samples if you are willing to pay the freight. |
| Q3:What is your delivery time? |
| A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock. |
| Q4:Do you have any test reports or certificates? |
| A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference. |
| Q5: Do you provide after-sale service? |
| A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement. |
