Product Details:
|
| Product Name: | YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts | Material: | Tungsten Carbide Cobalt / Nickel |
|---|---|---|---|
| Keywords: | Customizable Tungsten Carbide Seal Rings | Material Grade: | YG6/8/10/13/15/20, YN6/8/10... |
| Surface: | Blanks/Lapping/Finished | Certificate: | ISO/API |
| Standard: | Standard Or Nonstandard | Shape: | Mechanical Seal, O Ring, Cemented Carbide Seal,TC Ring |
| Application: | Pumps, Mechanical Seals | Appearance: | Customized |

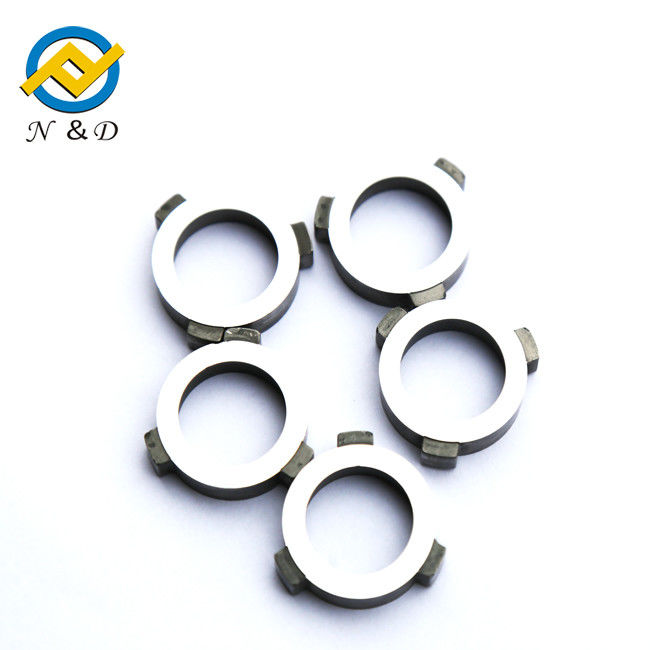

YG6/8/10/13/15 Customizable Tungsten Carbide Seal Rings Wear Parts
Description:
YG6/8/10/13/15 customizable tungsten carbide seal rings wear parts is a kind of sealing device that can withstand high temperature, high pressure and corrosive media. It is made of high-quality materials, usually metal or elastic materials, with good elasticity and sealing properties. The high-strength sealing ring forms an enclosed space by tightly uniting the two planes to prevent the leakage of gas, liquid or other media.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
Application:
The tungsten carbide seal-ring can divided into both of the rorating seal-ring, and state seal ring, and constitutes mechanic seal together with the spring, rubber seal-ring and steel jacket. YG6/8/10/13/15 customizable tungsten carbide seal rings are widely used in mechanical seals for pumps, compressors mixers and agitators found in oil refineries, petrochemical plants, fertilizer plants, breweries, mining , pulp mills, and the pharmaceutical industry. The seal-ring will be installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Service:
There is a big choice of sizes and types of the YG6/8/10/13/15 customizable tungsten carbide seal rings, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.

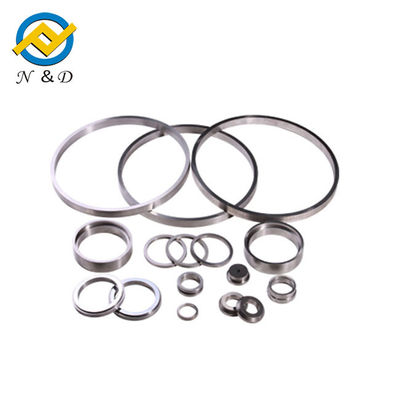

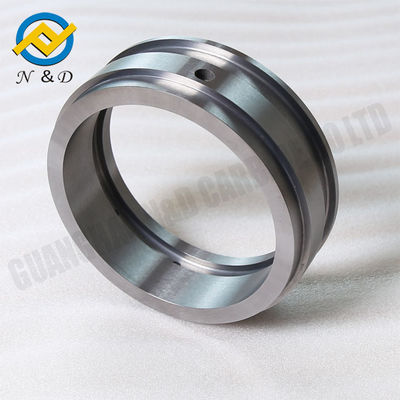

T.C Ring Shape for reference:
Guanghan ND Carbide produces a wide variety of wear-resistant and corrosion-resistant tungsten carbide components, our line includes:
*Mechanical seal rings
* Bushings, Sleeves
*Tungsten Carbide Nozzles
*API Ball and Seat
*Choke Stem, Seat, Cages, Disk, Flow Trim...
*Tungsten Carbide Burs/ Rods/Plates/Strips
*Other custom tungsten carbide wear parts
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? is it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
