Product Details:
|
| Product Name: | 8% Co Tungsten Carbide Seal Rings Wear Parts YG8 | Material: | Tungsten Carbide Nickel / Cobalt |
|---|---|---|---|
| Keywords: | 8%co Tungsten Carbide Seal Rings YG8 | Material Grade: | YG6,YG8,YG13, YG20, YN6,YN8,YN10,... |
| Outside: | Blanks/Finished/Lapping | Certificate: | ISO/API |
| Product Standard: | Standard Or Nonstandard | Type: | Mechanical Seal, O Ring, Cemented Carbide Seal,TC Ring |
| Size And Shape: | Customized | Application: | Agitators, Pumps, Mechanical Seals，Cetrifuge |

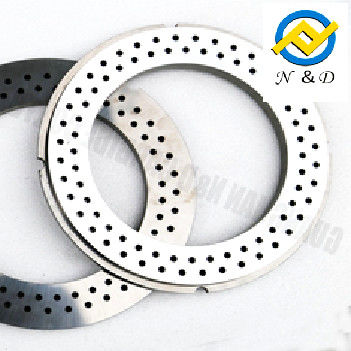

8% Co Tungsten Carbide Seal Rings Wear Parts YG8
Description:
8% Co tungsten carbide seal rings wear parts YG8 is simple in structure, but has enough strength and stiffness, good heat resistance and impact capacity, small friction coefficient, not damaged under working conditions (such as pressure, temperature and sliding speed, etc.), deformation should be as small as possible, and the working conditions can still maintain the tightness. We have many different material grade for customized wear resistance cemented tungsten carbide mechanical seal ring.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
Application:
The seal-ring will be installed on the pump body and rotating axle,and forms through the end face of the rorating and static ring a liquid or gas seal. 8% Co tungsten carbide seal rings wear parts YG8 are widely used in mechanical seals for pumps, compressors mixers and agitators found in oil refineries, petrochemical plants, fertilizer plants, breweries, mining , pulp mills, and the pharmaceutical industry. The seal-ring will be installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Service:
There is a big choice of sizes and types of the 8% Co tungsten carbide seal rings wear parts YG8, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.
T.C Ring Shape for reference:
Guanghan ND Carbide produces a wide variety of wear-resistant and corrosion-resistant tungsten carbide components, our line includes:
*Mechanical seal rings
* Bushings, Sleeves
*Tungsten Carbide Nozzles
*API Ball and Seat
*Choke Stem, Seat, Cages, Disk, Flow Trim...
*Tungsten Carbide Burs/ Rods/Plates/Strips
*Other custom tungsten carbide wear parts
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? is it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
Q. How to proceed an order for 8%Co Tungsten Carbide Seal Rings ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
