Product Details:
|
| Style: | Mechanical Seal Ring | Material: | Tungsten Carbide |
|---|---|---|---|
| Grade: | YG6,YG8,YG20/YG20C/YG25 | Standard Or Nonstandard: | Standard Or Nonstandard |
| Application: | Fertilizer Plants/etc | Size: | Standard Or Customized |
| High Light: | YG25 Tungsten Carbide Seal Rings,Tungsten Carbide Seal Rings anti Corrosion,YG20C Carbide Seal Ring |
||

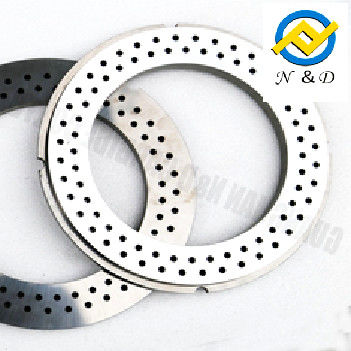

High Density Tungsten Carbide Seal Rings Corrosion Resistance Yg20c Yg25
YG6/YG8/YG10 Standard Inlaid Carbide Seal-ring/Bearing type A1For Oil Refineries/Petrochemical plants
Product Description
Tungsten carbide seals have a unique combination of high fracture strength and high hardness that minimizes or eliminates these problems.
Other favorable properties of tungsten carbide seals include high thermal conductivity values and low coefficient of thermal expansion.
These seals last longer than other materials.
We always insist on using high-quality tungsten carbide powder as raw material, and refuse to use low-quality tungsten carbide powder.
We are an ISO certified carbide supplier and experts in producing quality OEM parts tailored to your specific needs. Tungsten carbide sealing rings are used as sealing faces in pumps and seals, compressors and agitators. It is commonly used in oil refineries, fertilizer plants, petrochemical plants, pharmaceutical/drug industries.
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Production line
Why choose us
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q&A
| Q1: Are you a factory or a trading company? |
| A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years. |
| Q2:What is your principle for the samples? |
| A: We offer free samples if you are willing to pay the freight. |
| Q3:What is your delivery time? |
| A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock. |
| Q4:Do you have any test reports or certificates? |
| A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference. |
| Q5: Do you provide after-sale service? |
| A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement. |
Our Quality Contral
