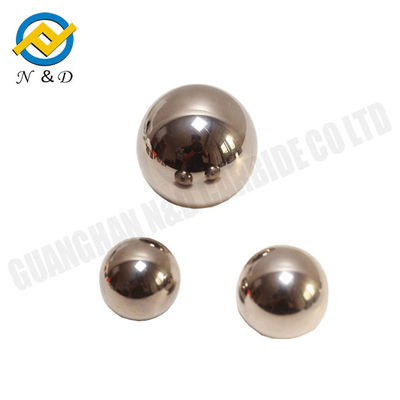

OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball Carbide Sizing Balls

OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball  Carbide Sizing Balls
OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball  Carbide Sizing Balls OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball  Carbide Sizing Balls

Large Image :  OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball Carbide Sizing Balls

Product Details:
Place of Origin: CHINA
Brand Name: N&D
Certification: ISO,API
Model Number: CUSTOMIZED
Payment & Shipping Terms:
Minimum Order Quantity: 10 PIECE
Price: Negotiable
Packaging Details: STANDARD EXPORT PACKING
Delivery Time: 15-30 DAYS
Payment Terms: T/T, Western Union
Supply Ability: 6 TONS PER MONTH

OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball Carbide Sizing Balls

Description
Product Name: Carbide Ball And Seat For Oil Field Material: Tungsten Carbide WC+Co
Grade: YG6, YG8 Etc OEM/ODM: Accepted
Application: Oil Field Size: Standard & Customized
High Light:

OEM Oil Field Carbide Ball and Seat

,

8% Co tungsten ball bearings

,

OEM Oil Field carbide sizing balls

OEM Tungsten carbide ball and seat for oil field







Specification



Product Name
Tungsten Carbide Ball and Seats For Oil Field
Material Specification
Typical Material composition is
5~8% Cobalt (Co)
92~95% Tungsten Carbide (WC)

But other compositions are available with cobalt content up to 15% . Hardness reduces and toughness increases with increasing cobalt content.
Standard
Metric and Inch size
Tolerance
Sintered as blank, polished or grinding to ABMA grade tolerance, G5, G10, G16, G100 etc. Also grinding to special request.
Grade
A variety of grades that provide exceptional wear and impact resistance grades for your job. K10/K20/K30 etc.
Application
Tungsten carbide seats are used for various Oil Field Equipment and Oilfield Valves such as Conventional Gas Lift Valves, Wireline Retrivable (WLR) Injection Pressure Operated (IPO) Gas Lift Valves etc.



Description



Tungsten carbide ball & seat, made from virgin raw materials, have high hardness, wear-resistance, corrosion resistance, and resistance to bending. We are able to supply Carbide Balls in various desired material specifications including TC Cobalt, TC Nickel and TC Titanium, and the TC Balls are manufactured as per ISO and Anti-Friction Bearing Manufacturer Association (AFMBA) standards.



The tungsten carbide valve ball and seat will be used widely to the stationary and roving unidirectional valve in various tube-type oil suction pump due to their high hardness, wear and corrosion resistance as well as good anti-compression and thermal shock characters with a high pumping effect and a long pump check cycle for raising of sand, gas and wax containing thick oil from wells.

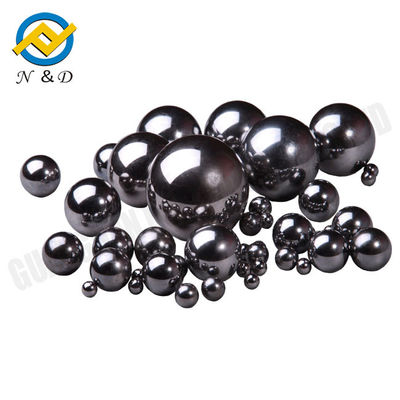

Blank balls and finished balls can be both supplied. Standard and non-standard balls are available.

OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball  Carbide Sizing Balls 0



Why choose us



1.Direct factory sale.

2.Reasonable price.

3.good wear resistance.

4.Longer service life.

5.OEM service available.

6.Short and on time delivery.

7.Samples and small orders are acceptable.

OEM Oil Field 8% Co Carbide Ball And Seat Tungsten Ball  Carbide Sizing Balls 1
