Product Details:
|
| Type: | Machining Services,nozzles | Material: | 100% Virgin Tungsten Carbide,WC+CO,100% Original Carbide,Original Tungsten Carbide Material,Tungsten Carbide WC+Co |
|---|---|---|---|
| Size: | OEM Accepted,Customized Size,Custom Size,Customer's Request | Application: | Dry/wet Blasting,Spray Gun,descaling,Petroleum Machinery,Oil Drilling |
| Grade: | Customer's Request,YWN8 Ect,YG6/YG8/YG15/YG 20,YG6/YG8,YG6X/YG8/YG6 | Surface: | Polished,Blanks Ungrounded/ground/grinded/polished Or As Requirment,Blanks Or Polished Grinding,Blank,grinded |
| High Light: | Hexagon Threaded tungsten carbide sandblast nozzles,tungsten carbide sandblast nozzles polished,Hexagon Threaded Tungsten Carbide Nozzle |
||

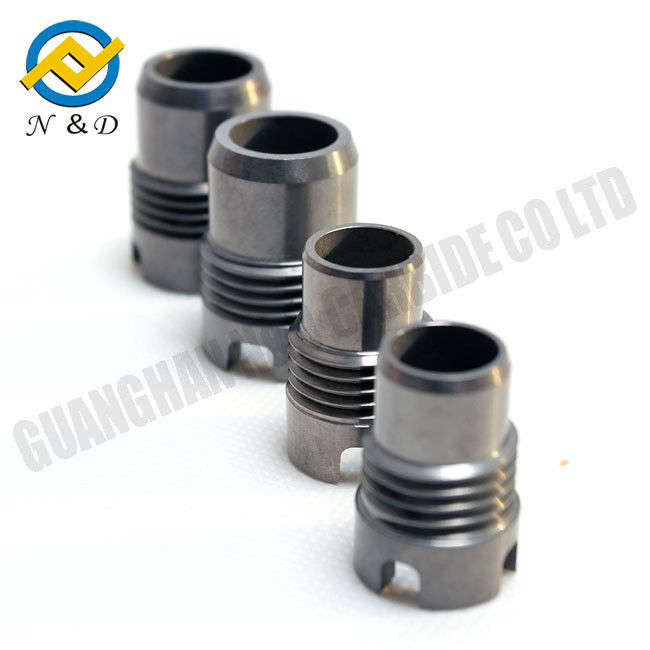

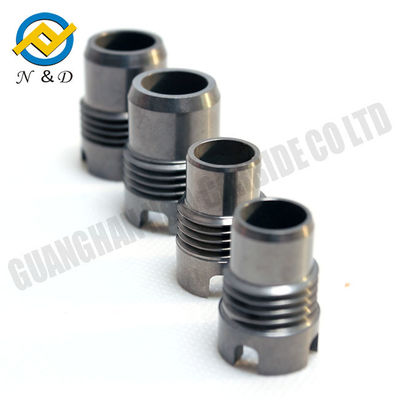

Inner Hexagon Threaded Nozzles Water Eye For PDC Drilling Tungsten Carbide Parts
Inner Hexagon Threaded Nozzles Water Eye produced by our company have several advantages
-- Superior wear resistance
Which means a reduction in the number of nozzles purchased over time
-- Longer life time
This allows faster average cutting speeds and significantly reduced system downtime for nozzle
re-placement and system calibration
-- Cost-effetive
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q&A
| Q1: Are you a factory or a trading company? |
| A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years. |
| Q2:What is your principle for the samples? |
| A: We offer free samples if you are willing to pay the freight. |
| Q3:What is your delivery time? |
| A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock. |
| Q4:Do you have any test reports or certificates? |
| A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference. |
| Q5: Do you provide after-sale service? |
| A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement. |
