Product Details:
|
| Material: | Tungsten Carbide | Application: | Pump |
|---|---|---|---|
| Type: | Standard,Standard Or Nonstandard | Size: | Standard Or Customized,OEM Accepted,can Be Customized |
| Product Name: | Tungsten Carbide Seal Ring | Physical Performance: | High Hardness |
| Hardness: | 84-91HRA | Process Engineer: | Adopt Advanced Technology |
| Shape: | Shape Requested,standard,ballistic,parabolic,conical | ||
| High Light: | 91HRA Tungsten Carbide Seal Rings,91HRA Tungsten Carbide Seal Rings,91HRA pump tungsten carbide mechanical seal |
||

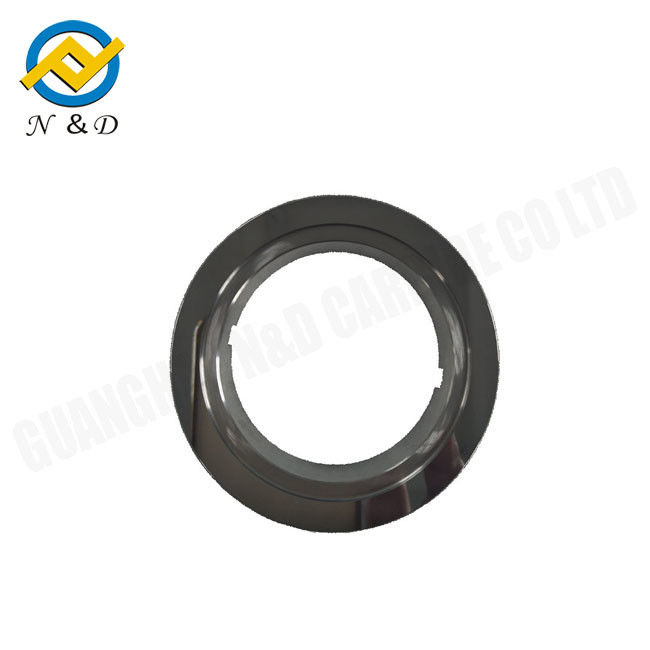

Polishing TC 100% Virgin Raw Material High Hardness Tungsten Carbide Seal Rings For Pump Customized Size
Product Description
Tungsten Carbide Seal Rings are used as Mechanical Seal faces in pumps, Compressors and Agitators. These are used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.
Tungsten Carbide Rings are generally made with Cobalt as binder material. Nickel bonded Rings also can be supplied.
In various sizes and designs and with close dimensional tolerance for use as an integral part of mechanical seals in general utility pumps and chemical pumps. Our tungsten carbide seal ring are used as the wear face of most mechanical seals for the sealing of fluids in all industries.
Application range
1. Machinery Seal
2. Shaft bearings and bushings in Mag-drive pumps
3. Blast and atomisation nozzles
4. Slider Mag-Valve or water fancet
5. Armour tile
6. Centrifuge tiles and wear parts
7. Semiconductor production
8. Paper industry
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Advantage
1. More than 10 years professional experience.
2. 100% new material.
3. Be more durable.
4. OEM & ODM Service.
5. All payment terms supported.
6. Fast delivery time & Convenient Transportation.
Production line
Why choose us
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q&A
| Q1: Are you a factory or a trading company? |
| A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years. |
| Q2:What is your principle for the samples? |
| A: We offer free samples if you are willing to pay the freight. |
| Q3:What is your delivery time? |
| A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock. |
| Q4:Do you have any test reports or certificates? |
| A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference. |
| Q5: Do you provide after-sale service? |
| A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement. |
