Product Details:
|
| Product Name: | Good Wear Resistance And Anti-Corrosion Customized Tungsten Cemented Carbide Seals Ring | Material: | Tungsten Carbide Nickel / Cobalt Binder |
|---|---|---|---|
| Keywords: | Tungsten Cemented Carbide Seals Ring | Material Grade: | YG6,YG8,YG15, YG20, YN6,YN8,YN10,... |
| Surface: | Blanks/Finished/Lapping | Certificate: | ISO/API |
| Standard Or Nonstandard: | Standard Or Nonstandard | Style: | Mechanical Seal, O Ring, Cemented Carbide Seal,TC Ring |
| Application: | Agitators, Pumps, Mechanical Seals | Size: | Customized |
| High Light: | carbide seal ring d 400mm,Anti Corrosion mechanical seal pumping ring,mechanical seal pumping ring d 400mm |
||
Good Wear Resistance And Anti-Corrosion Customized Tungsten Cemented Carbide Seals Ring
Description:
Tungsten cemented carbide seals ringhave a good resistant-wearing,high fractural strength,high thermal conductivity, small heat expansion co-efficient.The tungsten cemented carbide seals ring can be divided into both of rotating seal-ring and static seal-ring.The two most common variations of tungsten cemented carbide seals ring are cobalt binder and nickel binder.
We have many different material grade for customized wear resistance cemented tungsten carbide mechanical seal ring. Customized service is very popular.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
Application:
Tungsten cemented carbide seals ringare widely used in mechanical seals for pumps, compressors mixers and agitators found in oil refineries, petrochemical plants, fertilizer plants, breweries, mining , pulp mills, and the pharmaceutical industry. The tungsten cemented carbide seals ring will be installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Service:
There is a big choice of sizes and types of the tungsten cemented carbide seals ring, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.

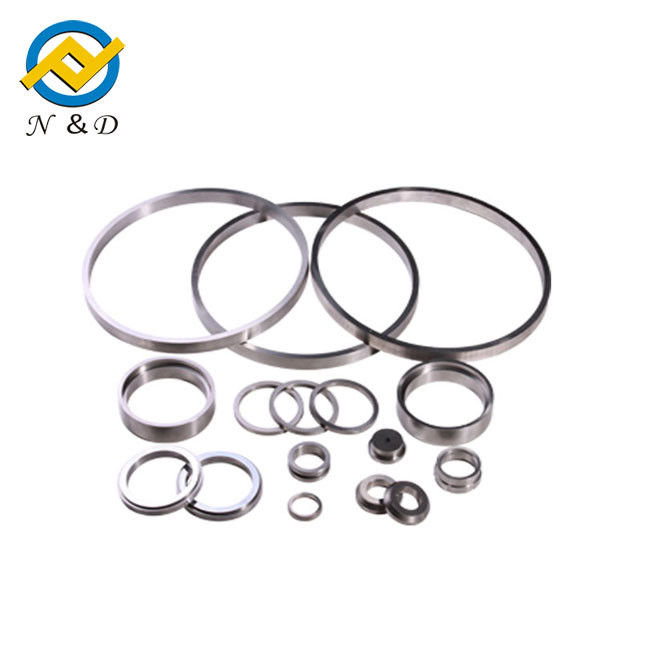

T.C Ring Shape for reference:
Guanghan ND Carbide produces a wide variety of wear-resistant and corrosion-resistant tungsten carbide components, our line includes:
*Mechanical seal rings
* Bushings, Sleeves
*Tungsten Carbide Nozzles
*API Ball and Seat
*Choke Stem, Seat, Cages, Disk, Flow Trim...
*Tungsten Carbide Burs/ Rods/Plates/Strips
*Other custom tungsten carbide wear parts
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? is it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
