Product Details:
|
| Product Name: | Manufacturer Of Customized Cemented Tungsten Carbide Mechanical Seal Ring For Pumps | Material: | Tungsten Carbide Cobalt Nickel Binder |
|---|---|---|---|
| Keywords: | Mechanical Seal Ring | Production Time: | 15-30 Days |
| Surface: | Blanks/Finished/Lapping | Certificate: | ISO/API |
| Standard Or Nonstandard: | Standard Or Nonstandard | Style: | Mechaical Seal, O Ring, Cemented Carbide Seal,TC Ring |
| Application: | Wear Resistance, Agitators, Pumps, Mechanical Seals | Size: | 6mm To 700mm |
| High Light: | ISO API pump seal ring,pump seal ring 88HRA wear resistance,ISO API centrifugal pump mechanical seal |
||

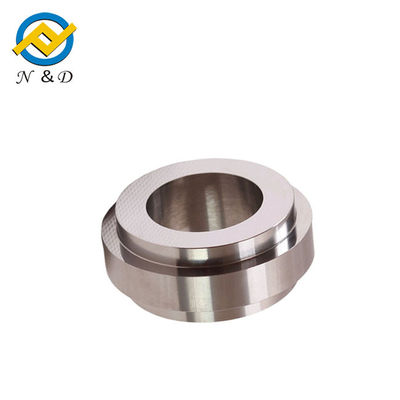

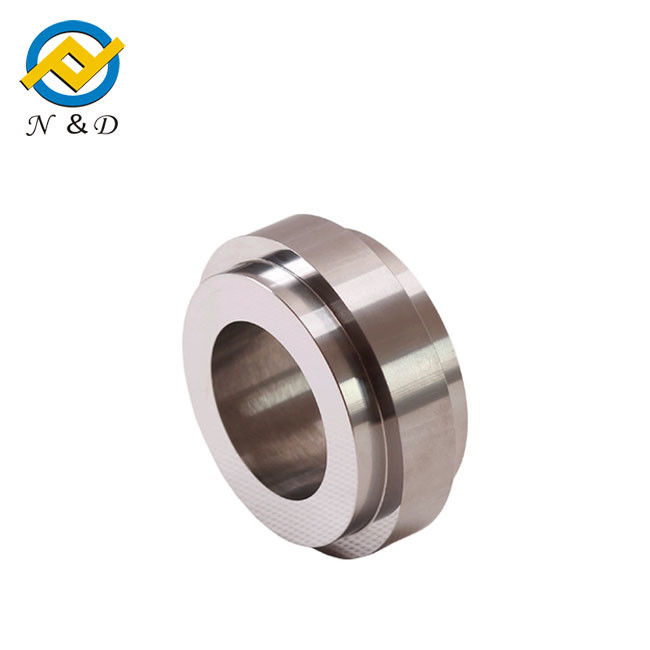

Manufacturer Of Customized Cemented Tungsten Carbide Mechanical Seal Ring For Pumps
Description:
Tungsten carbide mechanical seal ring has a good resistant-wearing,high fractural strength,high thermal conductivity, small heat expansion co-efficient.The tungsten carbide mechanical seal faces can be divided into both of rotating seal-ring and static seal-ring.The two most common variations of tungsten carbide mechanical seal ring are cobalt binder and nickel binder.We have many different material grade for customized wear resistance cemented tungsten carbide mechanical seal ring.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
Application:
Tungsten Carbide mechanical seal rings are widely used in mechanical seals for pumps, compressors mixers and agitators found in oil refineries, petrochemical plants, fertilizer plants, breweries, mining , pulp mills, and the pharmaceutical industry. The seal-ring will be installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Service:
There is a big choice of sizes and types of the tungsten carbide mechanical seal ring, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.
T.C Ring Shape for reference:
Guanghan ND Carbide produces a wide variety of wear-resistant and corrosion-resistant tungsten carbide components, our line includes:
*Mechanical seal rings
* Bushings, Sleeves
*Tungsten Carbide Nozzles
*API Ball and Seat
*Choke Stem, Seat, Cages, Disk, Flow Trim...
*Tungsten Carbide Burs/ Rods/Plates/Strips
*Other custom tungsten carbide wear parts
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? is it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
