Product Details:
|
| Material: | Tungsten Carbide | Size: | Can Be Customized |
|---|---|---|---|
| Product Name: | Tungsten Carbide Seal Ring | Keywords: | Tungsten Carbide Seal Ring |
| Shape: | Shape Requested | Dimensions: | Customized |
| High Light: | Rotating YG6 Tungsten Carbide Seal Rings,14.9g/cm3 mechanical seal ring,Rotating YG6 seal ring mechanical seal |
||

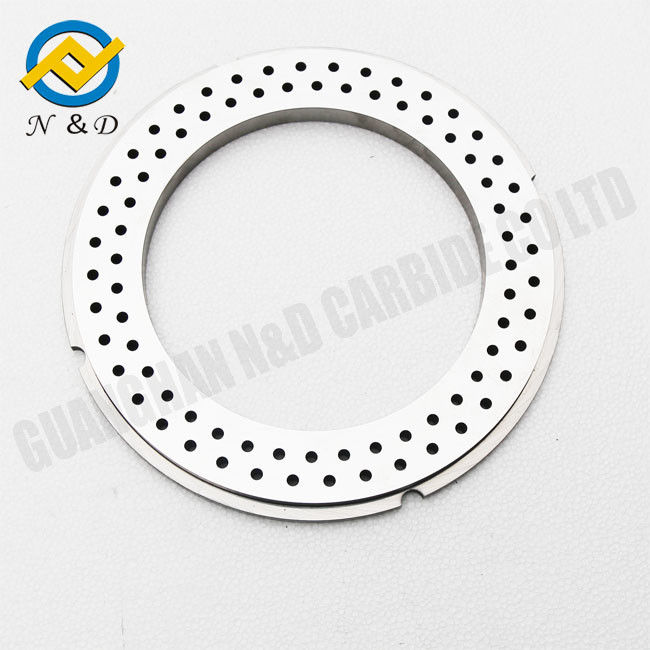

Rotating YG6 Tungsten Carbide Seal Rings
Customized Good Thermal Conductivity Tungsten Rotating Ring/Tungsten Carbide
Product Description
Tungsten carbide is the most excellent seal face material in the seal material world. One of main reasons for using Tungsten Carbide is the additional wear resistance that can be achieved in both moving and static parts. This is particular the case in serve service conditions, such as high temperature, and high levels of corrosion and abrasion.
It is widely used in oil refineries, petrochemical industries, fertilizer plants, petrochemical plants, Pharmaceutical industries.
We are an ISO certified carbide supplier,and expert in producing OEM parts with excellent quality according to your specific needs.Tungsten Carbide Seal Rings are used as Seal faces in pump and seal, Compressors and Agitators. It is often applied in Oil Refineries, Fertilizer Plants,Petrochemical plants,Pharmaceutical/Drugs industries.
Tungsten Carbide Rings are usually made with Cobalt (Co) as binder material. Nickel(Ni) Bonded Rings are also supplied.
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Co | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YG6 | Balance | 5.8～6.2 | ≤0.5% | 14.75～15.0 | 91.0～92.5 | 2000(2500) |
| YG8 | Balance | 7.8～8.2 | ≤1% | 14.5～14.9 | 90.5～92.0 | 2100(2800) |
| YG10 | Balance | 9.8～10.3 | 0% | 14.2～14.6 | 89.0～91.0 | 2600(3200) |
| YG13 | Balance | 12.7～13.2 | ≤1% | 14.0～14.3 | 87.0～89.0 | 2400(3000) |
| YG20 | Balance | 19.5～20.5 | 0% | 13.4～13.6 | 83.0～85.0 | 2600(3000) |
| Grade | Chemical properties | Physical and mechanical properties | ||||
| WC | Ni | Additive | Density | Hardness HRA | Bending Strength | |
| g/cm3 | (HV) | (N/mm2) | ||||
| ≥ | ||||||
| YN6 | Balance | 6.5～7.5 | ≤1% | 14.5～14.8 | 89.0～92.0 | 1800(2200) |
| YN8 | Balance | 8.0～9.0 | ≤1% | 14.4～14.8 | 88.0～91.0 | 2000(2300) |
| YN10 | Balance | 9.75～10.25 | ≤0.5% | 14.2～14.6 | 87.5～90.0 | 2100 |
| YN12 | Balance | 11.8～12.5 | ≤1.5% | 13.9～14.2 | 88.0～89.0 | 2485 |
Production line
Why choose us
Packaging & Delivery
Packing Details:
Plastic Boxes Inside and Cartons Outside
Port:
Guangzhou/Shanghai/Shenzhen/Dalian etc.
Delivery Details:
Generally it is 5-7 days if the goods are in stock.
Or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q&A
| Q1: Are you a factory or a trading company? |
| A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years. |
| Q2:What is your principle for the samples? |
| A: We offer free samples if you are willing to pay the freight. |
| Q3:What is your delivery time? |
| A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 30 to 35 days when there is no stock. |
