Product Details:
|
| Product Name: | China Manufacturer 6%Co Tungsten Carbide Seal Rings | Material: | Tungsten Carbide Nickel / Cobalt |
|---|---|---|---|
| Keywords: | 6%co Tungsten Carbide Seal Rings | Material Grade: | YG6,YG8,YG15, YG20, YN6,YN8,YN10,... |
| Surface: | Blanks/Finished/Lapping | Certificate: | ISO/API |
| Standard Or Nonstandard: | Standard Or Nonstandard | Style: | Mechanical Seal, O Ring, Cemented Carbide Seal,TC Ring |
| Application: | Agitators, Pumps, Mechanical Seals | Size: | Customized |
| High Light: | 6% Co Tungsten Carbide Seal Rings,6% Co tungsten carbide wear parts,Tungsten Carbide Seal Rings YN6 YN8 |
||

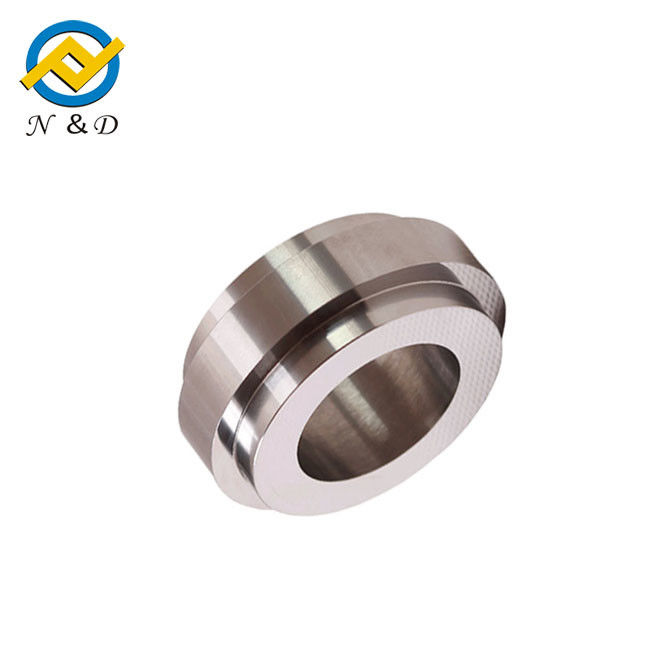

China Manufacturer 6%Co Tungsten Carbide Seal Rings
Description:
6%co tungsten carbide seal rings have a good resistant-wearing,high fractural strength,high thermal conductivity, small heat expansion co-efficient.The 6%co tungsten carbide seal rings can be divided into both of rotating seal-ring and static seal-ring.The two most common variations of tungsten carbide mechanical seal ring are cobalt binder and nickel binder.We have many different material grade for customized wear resistance cemented tungsten carbide mechanical seal ring.
| Grade | Chemical Component(%) | |||||||
| WC | CO | NI | TIC | OTHER | Bending Strength(>N/m㎡) | Hardness (>HRA) | Density (g/cm3) | |
| YN6 | 94 | / | 6 | 1500 | 89 | 14.5-14.9 | ||
| YN8 | 92 | / | 8 | 1650 | 88 | 14.4-14.8 | ||
| YN10 | 90 | / | 10 | 2100 | 87 | 14.3-14.7 | ||
| YG6 | 94 | 6 | / | 1550 | 89.5 | 14.7-15.1 | ||
| YG8 | 92 | 8 | / | 1700 | 89 | 14.6-14.9 | ||
| YG13 | 87 | 13 | / | 2400 | 88 | 13.9-14.3 | ||
| YG15 | 85 | 15 | / | 2500 | 87 | 13.9-14.3 | ||
Application:
6%co tungsten carbide seal rings are widely used in mechanical seals for pumps, compressors mixers and agitators found in oil refineries, petrochemical plants, fertilizer plants, breweries, mining , pulp mills, and the pharmaceutical industry. The seal-ring will be installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
Service:
There is a big choice of sizes and types of the 6%co tungsten carbide seal rings, we can also recommend, design, develop, produce the products according to the drawings and requirements of the customers.
T.C Ring Shape for reference:
Guanghan ND Carbide produces a wide variety of wear-resistant and corrosion-resistant tungsten carbide components, our line includes:
*Mechanical seal rings
* Bushings, Sleeves
*Tungsten Carbide Nozzles
*API Ball and Seat
*Choke Stem, Seat, Cages, Disk, Flow Trim...
*Tungsten Carbide Burs/ Rods/Plates/Strips
*Other custom tungsten carbide wear parts
We offer a full range of carbide grades in both cobalt and nickel binders.
We handle all processes in house following our customers’ drawings and material specification. Even if you don’t see it list here, if you have the ideas we will produce.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer of tungsten carbide since 2004. We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.
Q: How long is your delivery time?
A: Generally,it will take 7 to 25 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q: Do you provide samples? is it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers’ cost.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test and inspection on our cemented carbide products before delivery.
